3D Cubes Optical Illusion Board

The Three-Value Lighting Principle & Rhombille Tiling

The 3D illusion relies fundamentally on value contrast rather than color contrast alone. For the human visual cortex to perceive three-dimensional volume on a flat surface, the brain demands three distinct light values aligned with an assumed directional light source:

• Top Plane (Maple / Spruce): Reflects maximum incident light (~80% reflectance). Provides a clean, bright highlight canvas that catches overhead illumination.
• Mid-Tone Plane (Beech): Represents diffuse ambient light (~45% reflectance). The dense, warm honey-amber of European Beech acts as the tonal bridge between highlight and deep shadow.
• Shadow Plane (Walnut): Simulates the occluded face (~15% reflectance). Rich Swiss Walnut provides deep espresso and chocolate hues, grounding the shadow side of each cube.

When assembled into 60°/120° diamonds meeting at a single vertex, the brain automatically reconstructs an isometric cube floating in three dimensions. Depending on cognitive focus, the cubes can appear to tumble toward you or recede away—the classic reversible Necker Cube phenomenon.

Vector schematic illustrating the mathematical 60°/120° rhomboid grid before workshop fabrication. Click to enlarge

The Compounding Angle Challenge: Precision at 60°

Unlike 90-degree square cutting boards (such as the Beech & Purpleheart grid), the 3D cubes board requires cuts at exactly 60 degrees. A deviation of just 0.1° per cut compounds sixfold at every hexagonal junction, creating a 0.6° gap error. Multiplied across 8 rows, an inaccurate miter gauge will leave gaping seams that no amount of clamp pressure can force shut without tearing the wood fibers.

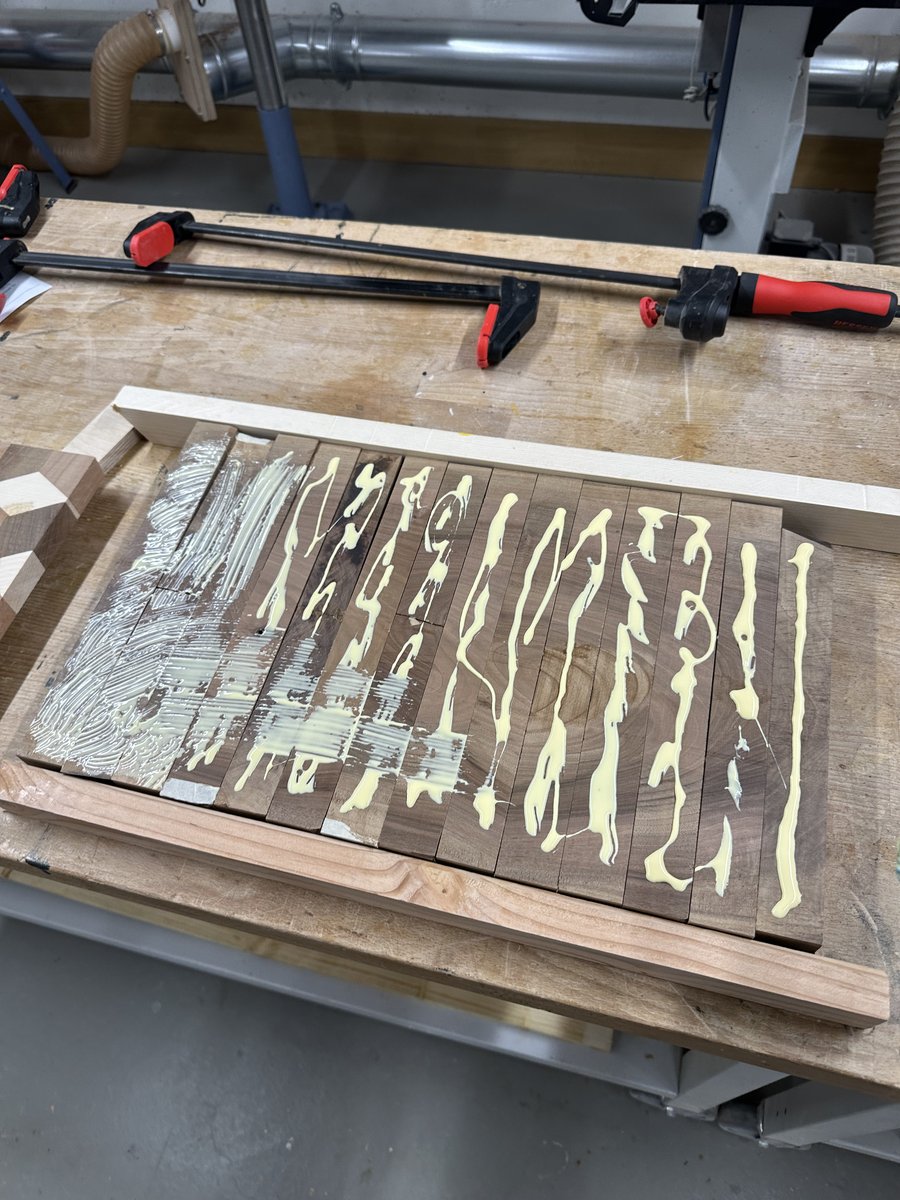

Three-Species Strip Lamination & Blank Assembly

The foundation of the optical illusion begins by milling long, perfectly uniform strips of Swiss Walnut, European Beech, and pale Alpine Maple/Spruce. Each strip was planed to identical thickness and jointed square on the edge. The strips were then arranged in a repeating tonal sequence—Walnut (shadow), Beech (half-tone), and Maple (highlight)—and edge-glued face-to-face to create the initial multi-layer striped blank.

Clamping was executed using heavy-duty Bessey pipe and parallel jaw clamps spaced closely across the workbench. Uniform pressure along the entire length was critical to avoid cupping or starving the joints, ensuring that every subsequent slice would share identical strip widths.

Alternating Walnut, Beech, and Maple strips under even clamping pressure to form the master laminated blank. Click to enlarge

60-Degree Angle Crosscutting on the Table Saw

Once the laminated blank was cured and planed clean on both faces, it was brought to the table saw to be crosscut into angled segments. The miter gauge was dialed in to precisely 60 degrees relative to the blade. A sacrificial fence and stop block ensured that every sliced strip emerged with identical segment width and pristine, tearout-free edges.

Each pass through the carbide blade sliced across the striped blank, yielding long parallelogram strips where the Walnut, Beech, and Maple sections were skewed into 60°/120° rhomboids. Clean, chatter-free cuts here are vital: even minor blade wobble will telegraph into hollows during the second glue-up.

Angled cuts transform linear stripes into parallelogram segments with 60° diamond facets. Click to enlarge

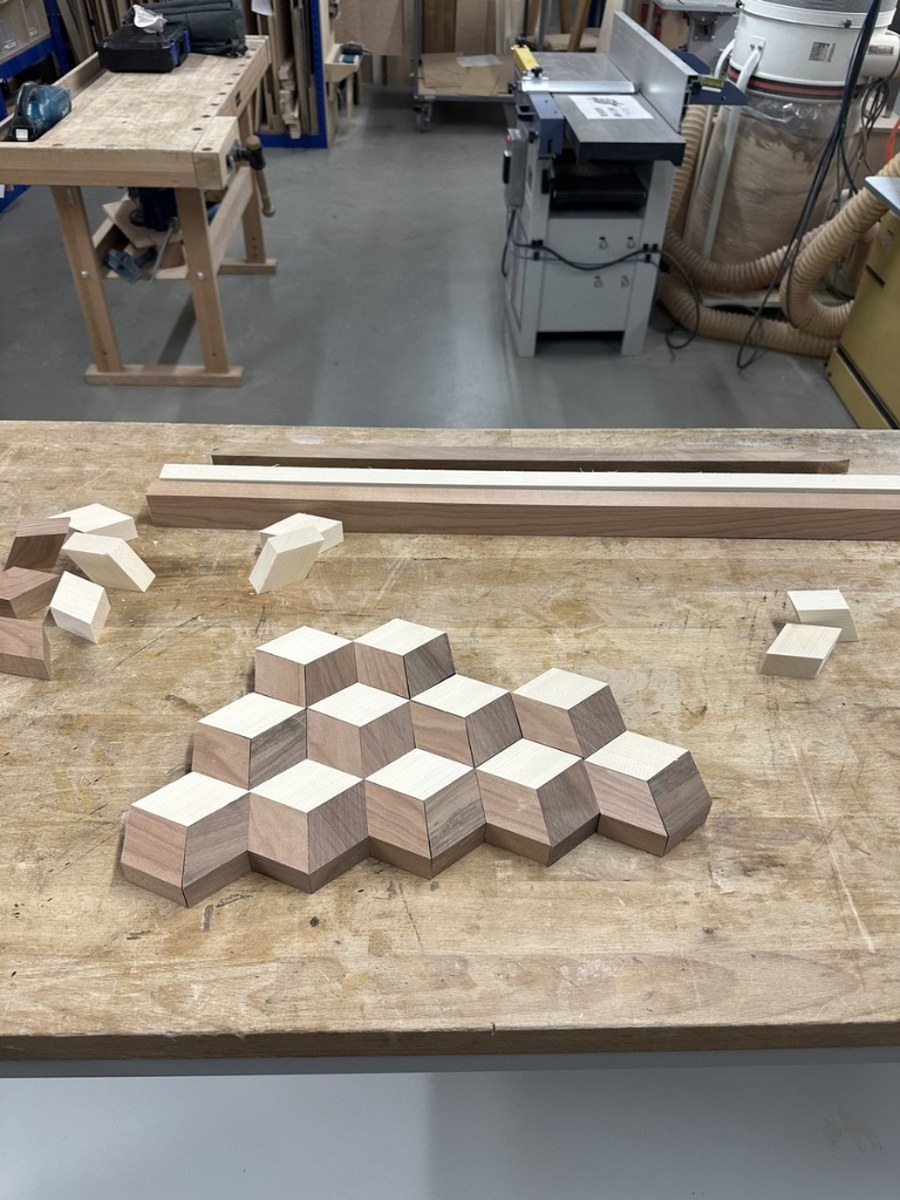

Dry-Fitting the Tumbling Blocks Pattern

This is the defining moment in the build: laying out the sliced parallelogram strips side-by-side on the assembly bench. By staggering each successive strip along the 60-degree axis by exactly one rhomboid segment, the individual diamonds align to form three-faceted hexagons.

Instantly, the two-dimensional diagonal strips vanish, replaced by the striking optical illusion of stacked, three-dimensional cubes tumbling through space. During dry-fit, the strips were inspected under raking light to verify that wood grain flowed harmoniously and that no strip had accidentally been inverted.

Offsetting adjacent strips by one unit causes the three species to meet at 120° vertices. Click to enlarge

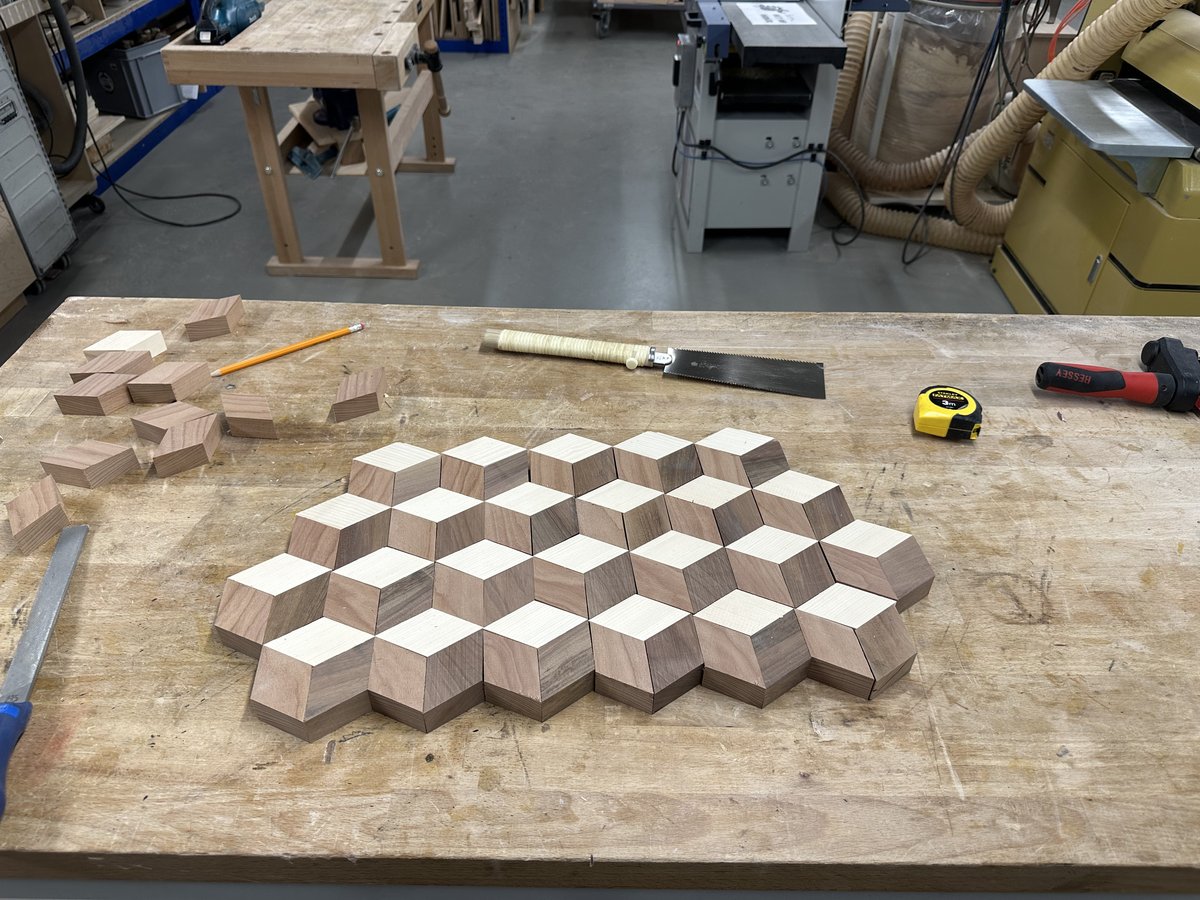

Vertex Registration & Close Seam Inspection

Before applying adhesive, a rigorous inspection of every intersection was performed. In a proper isometric tessellation, three distinct diamonds meet at each shared vertex: a bright top diamond, a warm mid-tone side diamond, and a dark shadow diamond.

Any drift in blade angle or thickness variation would show up immediately as stepped corners or gaps at these three-point hubs. Fine pencil reference lines were marked across the strips to ensure perfect longitudinal registration during the frantic open-time of the glue-up.

Critical verification: ensuring sharp three-facet vertices meet without axial creep or offset. Click to enlarge

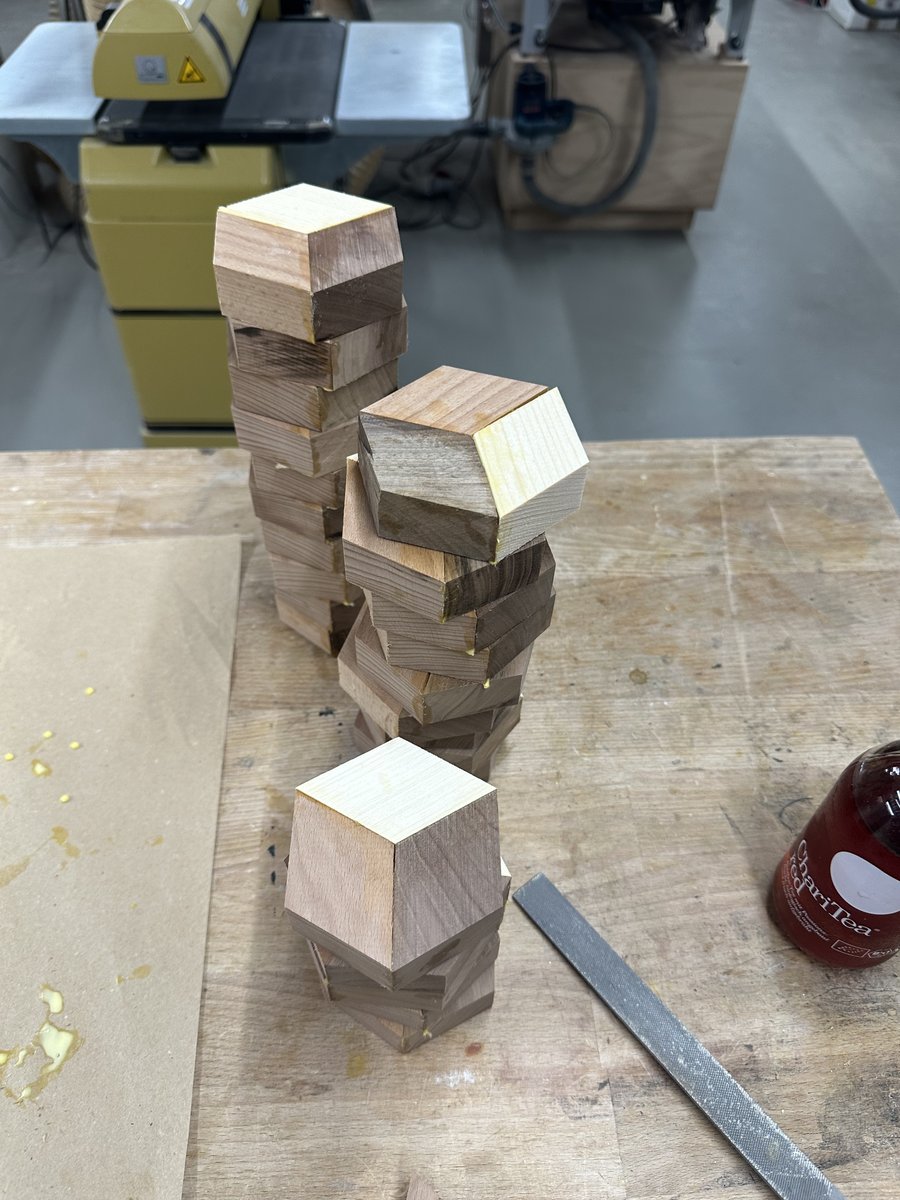

Hand-Assembling Diamonds into Hexagon Cubes

With all angles cut and dry-fit tolerances inspected, the critical first assembly phase began: gluing the individual diamond rhomboids into hexagonal cube units. In an isometric tumbling blocks pattern, each 3D cube is formed from three 60°/120° diamonds—one Alpine Spruce (top highlight), one European Beech (warm mid-tone), and one Swiss Walnut (deep shadow)—meeting precisely at a central 120-degree vertex.

Clamping three loose diamond facets with conventional screw or parallel bar clamps is practically impossible without slipping. The acute 60° angles act as wedges: tightening mechanical clamp pressure forces the pieces to scissor and slide violently out of alignment.

To solve this, the first glue-up was completed entirely by hand. Titebond III aliphatic resin was applied to the meeting 60-degree edges of the three diamonds. Each hexagonal trio was then gripped firmly between the fingers, applying steady manual pressure for 1 to 2 minutes per block until the adhesive developed enough green tack strength to hold its shape without shifting or sliding off-plane.

This manual bonding was repeated block by block, unit by unit, for every single hexagon required across the board. In total, it was an extraordinarily time-consuming, finger-tiring ordeal that demanded immense focus and patience—yet it allowed tactile micro-adjustments to ensure the top faces remained perfectly coplanar and the three-facet vertices stayed crisp.

All 3-diamond hexagons assembled by hand, held under manual pressure for 1–2 minutes per block until tack. Click to enlarge

Master Lamination with Clamping Cauls

With all individual 3-diamond hexagons cured from the first glue-up, the project advanced to the second glue-up: joining the entire field of hexagonal cubes into a unified, monolithic master panel. When lateral clamping force is applied against 60-degree angled joints across multiple rows, the hydraulic wedge effect causes the panel to want to slide along the joints and buckle upward like a tent.

To counter this, heavy hardwood clamping cauls wrapped in packing tape (to prevent glue bonding) were positioned across the top and bottom faces of the assembly. Vertical F-clamps locked the cauls down flat to the bench, while Bessey parallel jaw clamps applied controlled lateral pressure, locking all strips into a single, dead-flat monolithic panel without slippage.

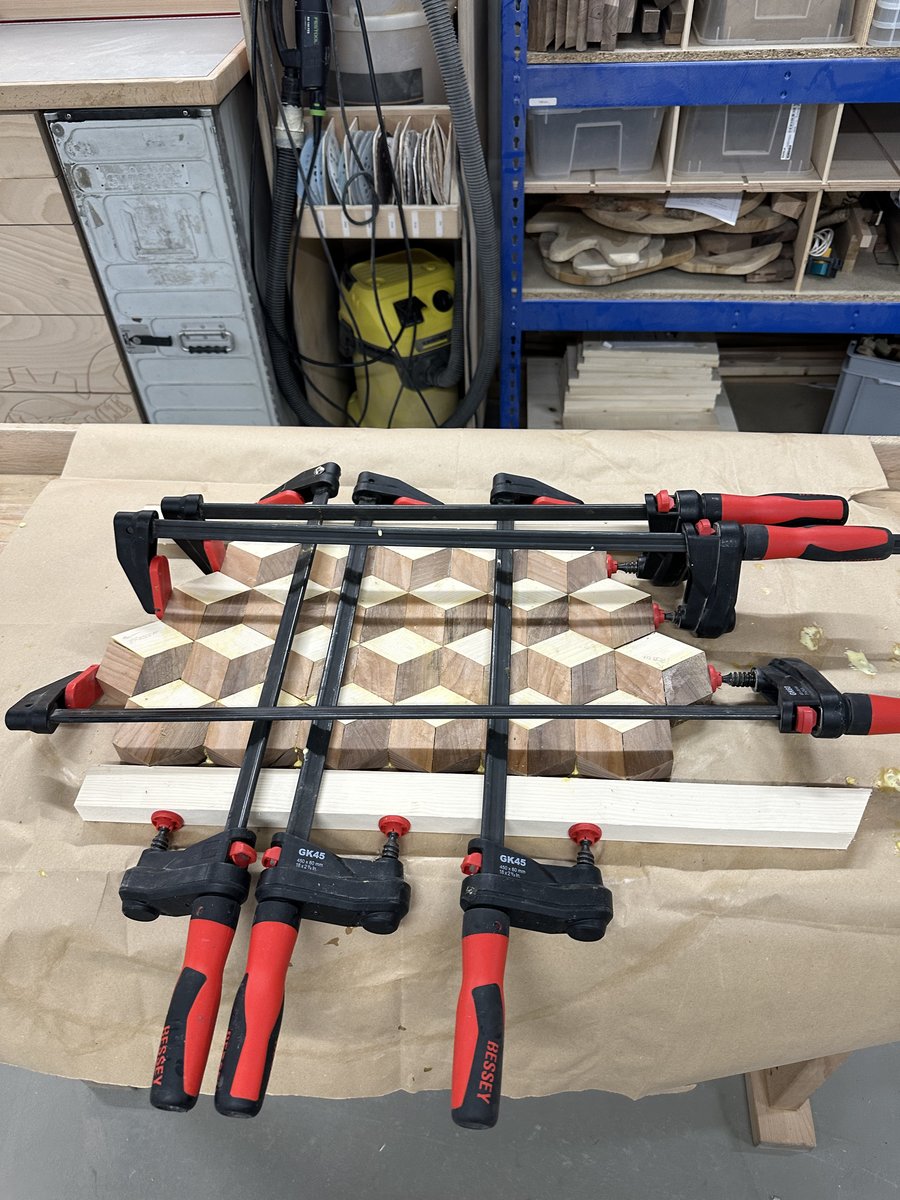

Rigid top and bottom cauls keep the 60° angled strips flat on the bench while lateral clamps close the seams. Click to enlarge

Release from Clamps & Glue Squeeze-Out Analysis

After a full 24-hour cure under clamp tension, the cauls and clamps were released. The raw glued slab emerged with its characteristic zigzag, stepped perimeter—the natural result of offsetting the 60° parallelogram strips.

Examining the cured glue beads along each seam confirmed consistent squeeze-out across the entire panel, proving complete adhesive coverage with zero starved voids. The cured glue beads were scraped off with a sharp carbide cabinet scraper before machine surfacing to protect cutter knives.

Zigzag perimeter edges before trimming, with hardened Titebond III squeeze-out ready for scraping. Click to enlarge

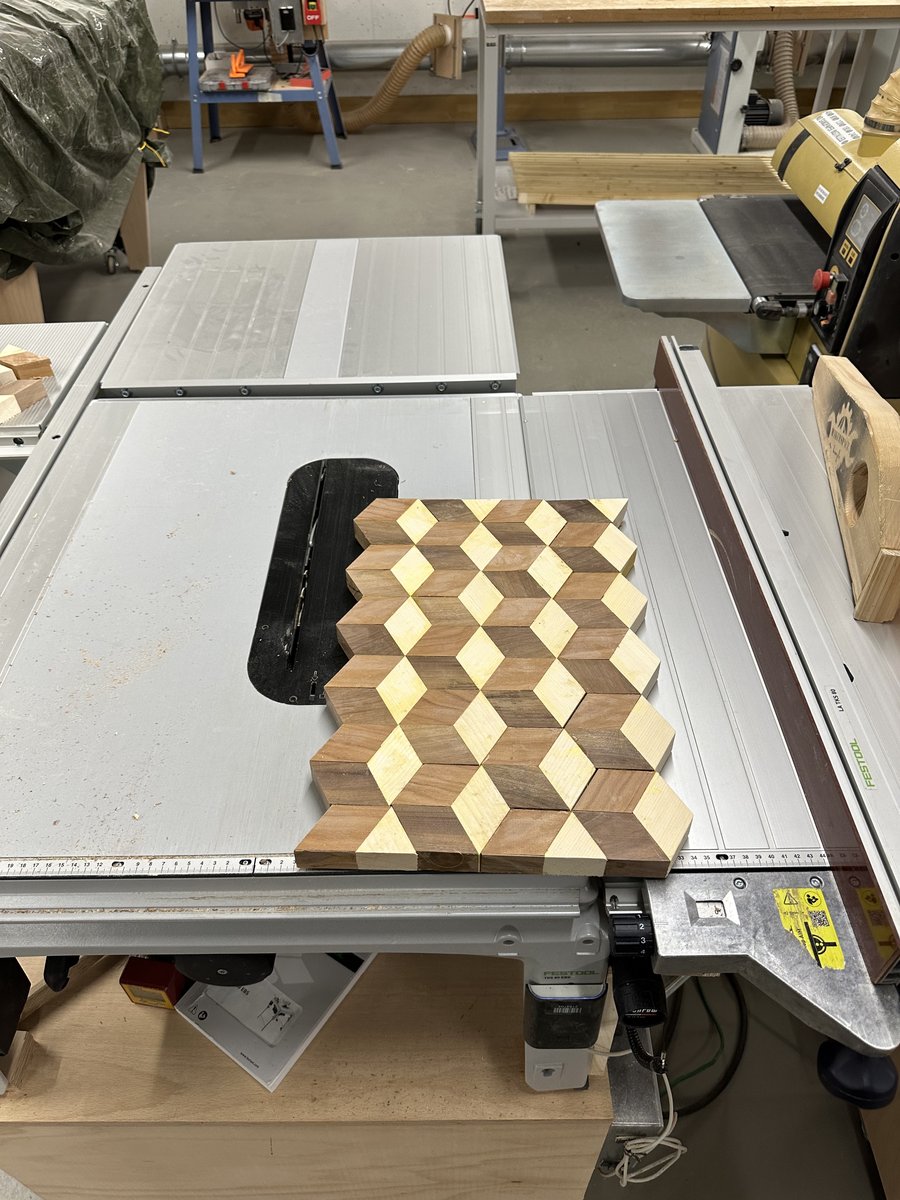

Perimeter Trimming on the Festool Table Saw

To turn the raw stepped panel into a clean, rectilinear cutting board, the board was moved to the workshop's precision saw station: the Festool TKS 80 EBS table saw (equipped with SawStop AIM safety technology).

Using a precision sliding crosscut fence, the jagged stepped ends were trimmed clean, establishing the first true 90-degree reference edge. The board was then rotated and rip-cut to establish parallel sides, finalizing the external dimensions at 45.0 cm × 24.0 cm. Visible in the shop background is the yellow Jet drum sander, ready for thickness calibration.

Festool TKS 80 table saw squaring the stepped edges; Jet drum sander visible in the background workshop. Click to enlarge

Drum Sanding, Edge Cauls & Surface Preparation

With the perimeter squared, the board underwent thicknessing and flattening on the Jet drum sander. Multiple light passes removed any residual surface height variations between adjacent strips, bringing the board down to a uniform 2.5 cm thickness while preserving sharp facet intersections.

Back on the workbench, edge cauls and Bessey parallel clamps were used for final stabilization and fine edge dressing. The board was then sanded progressively through 80 → 120 → 180 → 240 grit using random orbital sanders. Between 180 and 240 grit, the entire surface was "water popped" (wiped with a damp microfiber cloth) to raise crushed grain fibers, then sanded smooth with 240 grit for an ultra-velvety touch. A delicate 45° chamfer was routed along all perimeter edges and corners for ergonomic comfort.

Workbench staging: edge caul clamping setup alongside the Glue-Bot dispenser before final abrasive finishing. Click to enlarge

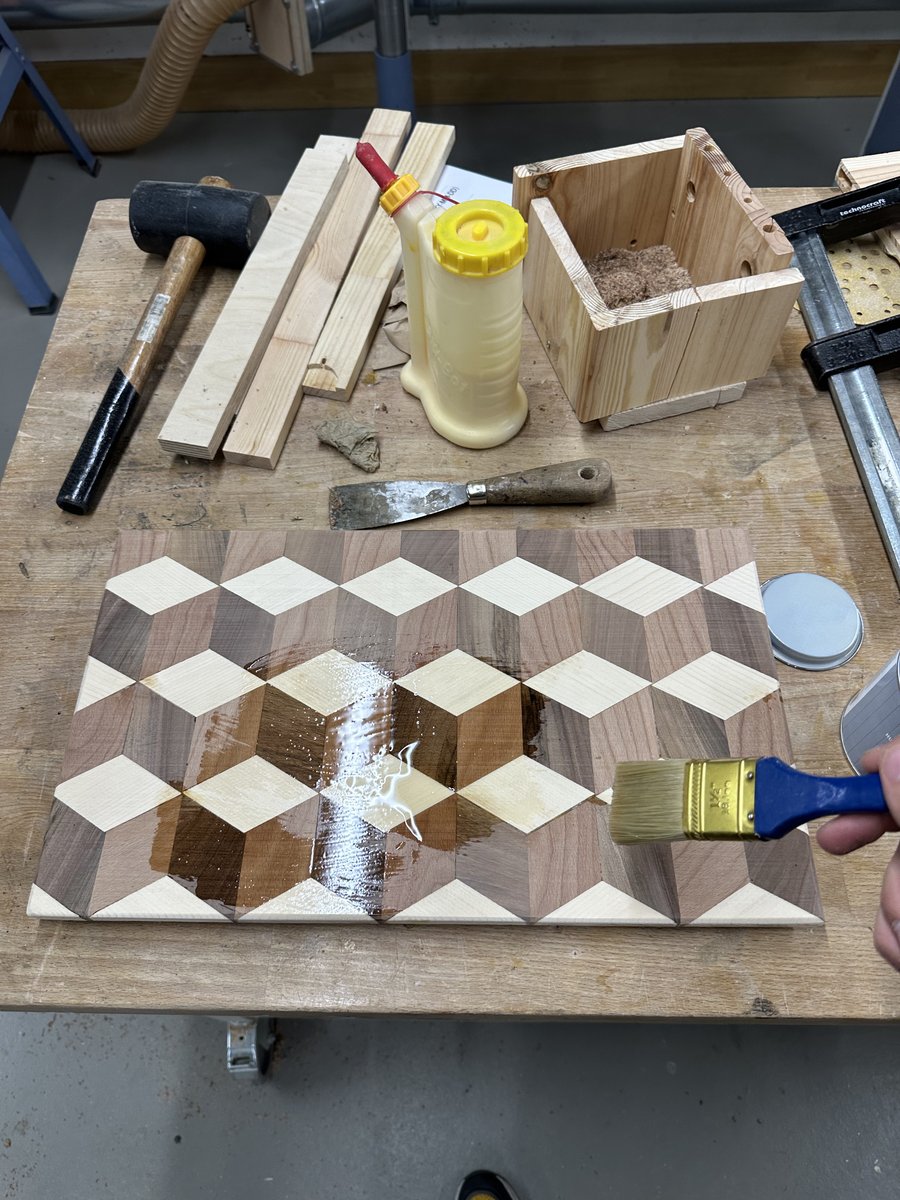

The Oil Pop — The First Centerline Brush Stroke

After hours of geometric planning, cutting, gluing, and meticulous sanding, the moment every woodworker waits for arrived: the application of the first finish coat. Using a clean natural bristle brush, pure USP food-grade mineral oil was painted straight down the center column of the dry, raw board.

The transformation is breathtaking. The muted, dusty-grey walnut instantly erupts into rich dark espresso; the pale beech blooms into warm honey-amber; and the spruce facets take on a clean, luminous gleam. The sharp boundary between the raw sanded flanks and the freshly oiled center creates an unforgettable visual spectacle on the workbench.

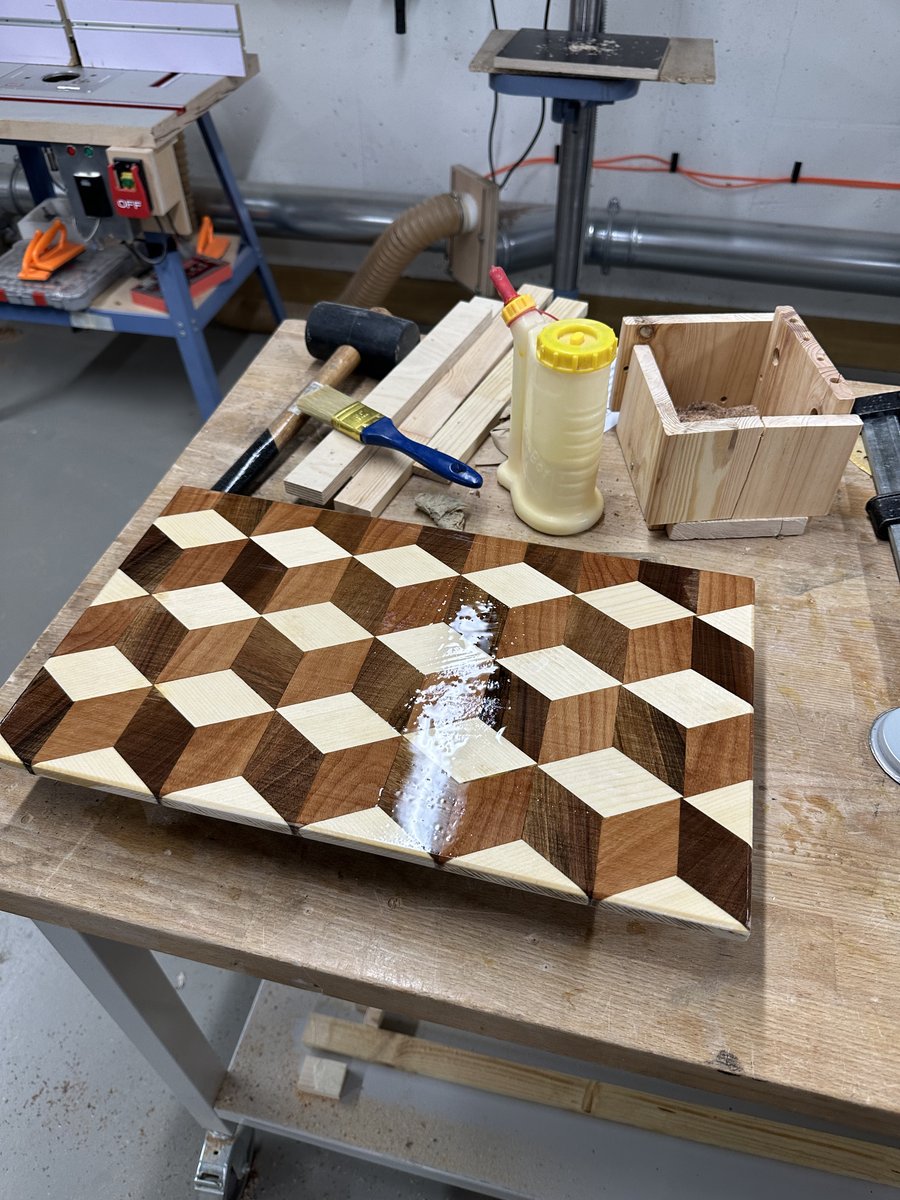

Instant contrast: the dry raw wood on the flanks versus the vibrant, oil-saturated cubes down the center line. Click to enlarge

Full Surface Saturation & 3D Illusion Depth

The mineral oil was applied generously over the entire top, bottom, and edge surfaces, allowing the end grain and long grain to drink in the oil until fully saturated. After wiping off excess oil and resting overnight, the board received a hot coat of handcrafted beeswax and botanical oil wood butter, buffed to a silky semi-gloss luster.

With the full surface saturated, the optical illusion reaches its full visual potency. The deep walnut shadow planes seem to recede inches below the surface, the beech facets provide warm solid body, and the top maple facets appear to catch a bright spotlight from above. Under any lighting condition, the flat board appears unmistakably as a three-dimensional field of stacked cubes.

The fully finished 45cm × 24cm board showing rich walnut shadows, golden beech, and bright top highlights. Click to enlarge

The Finished Masterpiece in Its Natural Habitat

Here is the completed 3D Cubes Optical Illusion Board in its everyday environment—photographed on a modern dual-monitor desk in Zürich. Whether serving as a breathtaking culinary presentation board for artisanal sourdough and aged Swiss cheeses or standing as an executive desk pad and geometric conversation piece, the craftsmanship speaks for itself.

Every joint is tight, the surface is dead flat and velvety smooth to the touch, and the geometric precision of the 60° tessellation creates an enduring testament to patient, methodical woodworking.

Flawless silky finish: the finished board showcased in centered focus, highlighting the crisp isometric tumbling cubes. Click to enlarge
