Project 03 • Sculptural Timber & Thermal Oxidation

Single-Piece Purpleheart Heart Board

A 25 cm × 15 cm heart-shaped serving board carved from a monolithic solid slab of Purpleheart (*Peltogyne*). Features deep router-table curved edges, an oven heat-treatment at 120°C–150°C to awaken intense violet coloration, and a natural beeswax Holz-Butter finish.

Project Specifications & Parameters

Dimensions 25.0 cm length × 15.0 cm width
Construction Style Monolithic Single-Piece Slab (Continuous grain, 100% solid timber, zero glue seams)
Wood Species Tropical Purpleheart (Peltogyne spp.), dense heartwood
Shape & Profile Heart-shaped silhouette with flowing organic compound curves
Edge Treatment Heavily curved roundover profile shaped on the router table and hand-blended
Thermal Color Activation Baked in oven at 120°C – 150°C for up to 60 minutes prior to oiling to accelerate photochemical pigment oxidation
Surface Conditioning Swiss Holz-Butter (100% natural organic beeswax and plant oils)
Intended Function Artisanal cheese platter, charcuterie service, and decorative culinary centerpiece
Workshop Origin Zürich, Switzerland
Thermal Oxidation & Beeswax Transformation

Raw Routed Wood vs. Oven-Bake & Holz-Butter

Drag the center handle to see how heat-treating between 120°C–150°C followed by beeswax Holz-Butter transforms the pale lilac timber into a deep, regal wine-violet.

Finished Purpleheart heart board oiled with Holz-Butter
Raw routed Purpleheart heart board before thermal treatment
Raw Routed & Sanded 140°C Oven + Holz-Butter
Workshop Journey

The Complete Build Log

From a dense exotic hardwood plank to a sculpted, thermally activated heirloom serving piece.

Step 01 Material Selection & Rough Cut

Selecting the Single Slab & Bandsaw Silhouette

Unlike laminated cutting boards, this project celebrates the monolithic beauty of a single solid piece of timber. A flawless 25 cm × 15 cm section of kiln-dried Central/South American Purpleheart (*Peltogyne*) was selected for its dense, knot-free heartwood. The heart silhouette was drafted with smooth symmetrical curves, then cut out on the bandsaw close to the line, leaving a clean margin for precision shaping.

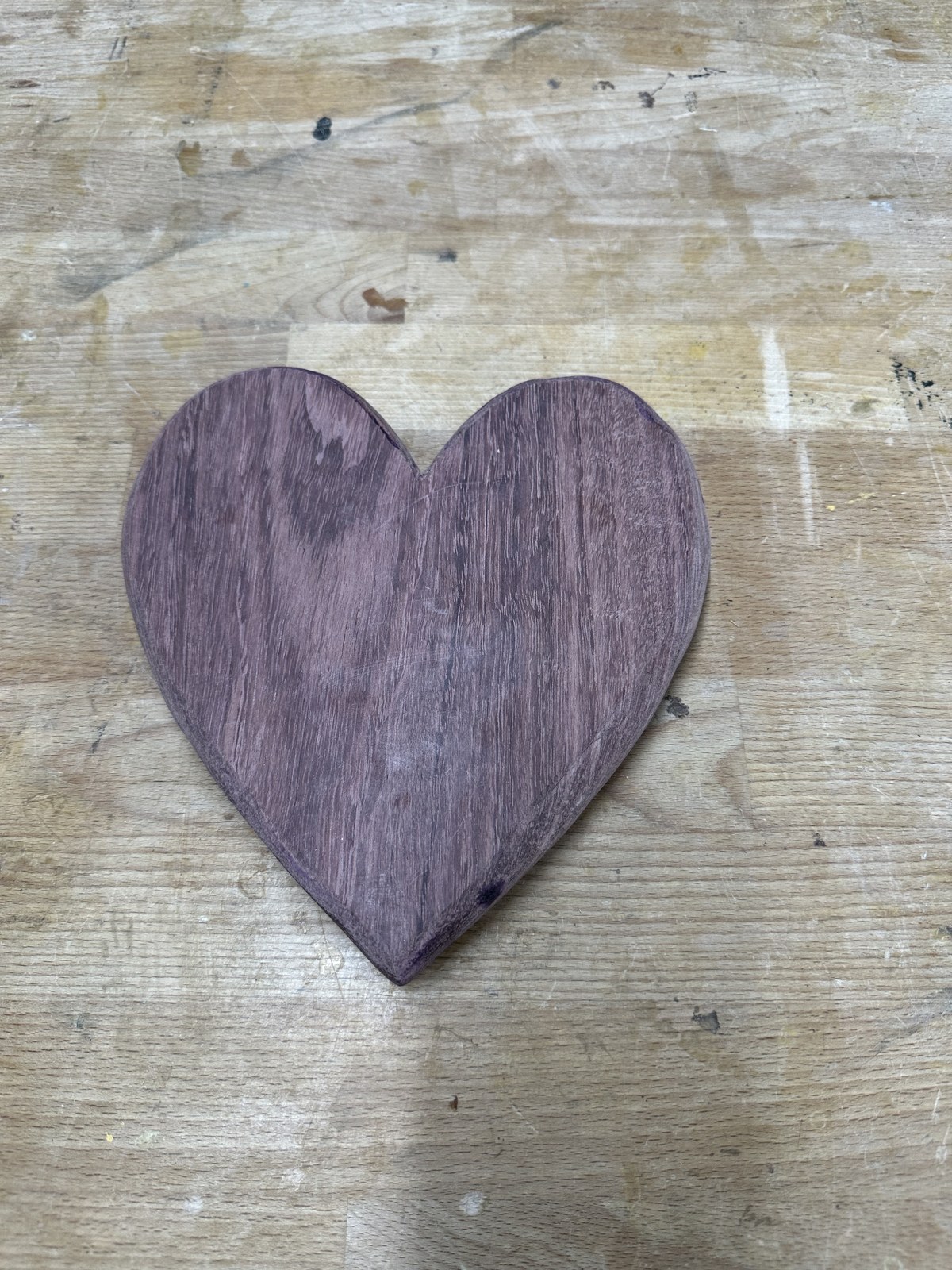

Raw heart cutout on the workbench
Raw single-piece Purpleheart blank after initial contour cutout on the workbench. Click to enlarge

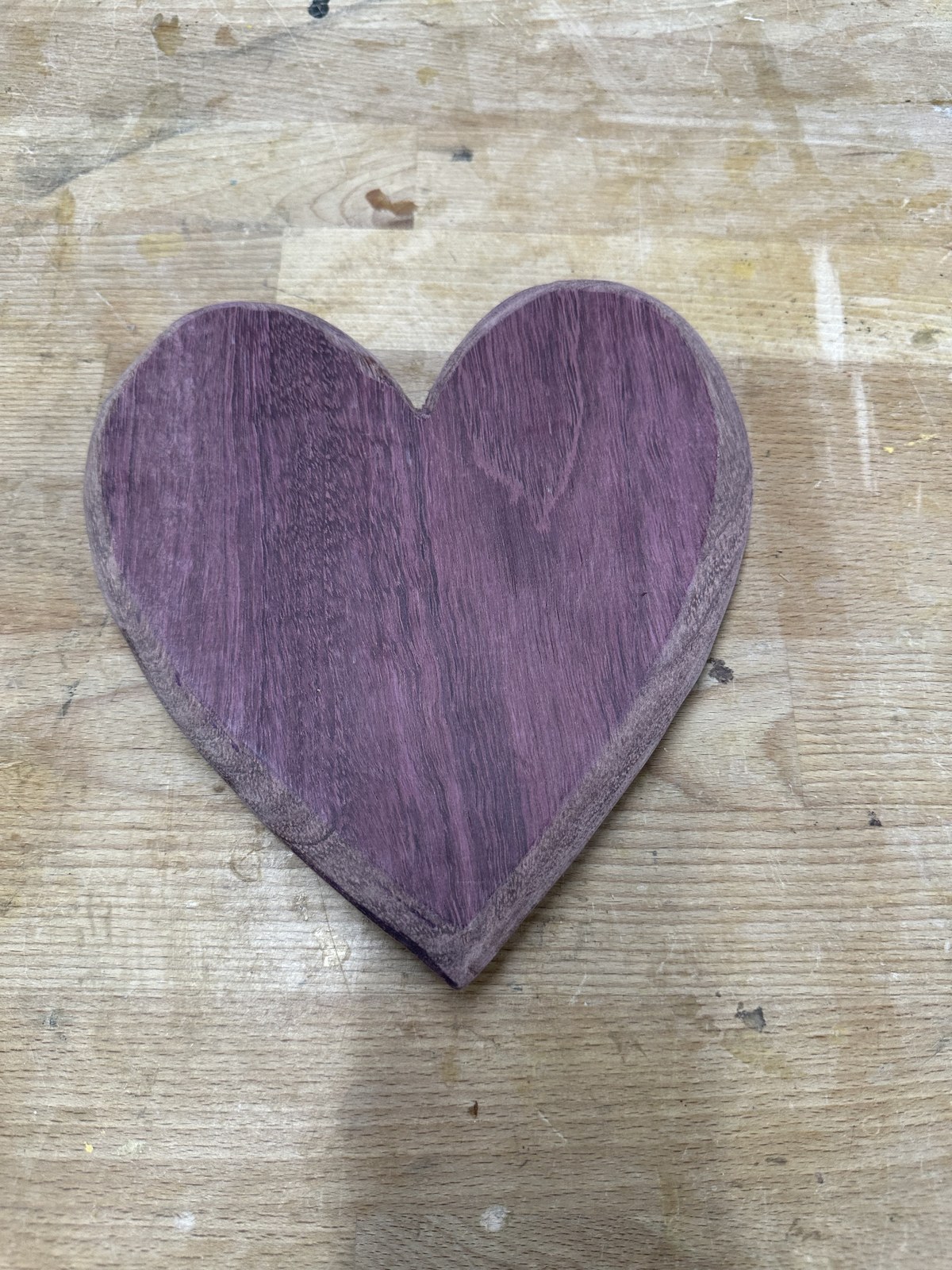

Close up of raw grain and heart silhouette
Close-up of the continuous grain pattern flowing uninterrupted across both lobes of the heart. Click to enlarge
Step 02 Router Table Sculpting

Deep Curved Edges Shaped on the Table Router

A serving board must feel inviting and silky in hand. To eliminate harsh flat edges, the piece was brought to the router table. Using a large-radius bearing-guided roundover bit, heavy flowing curves were machined along the entire top and bottom perimeter. The inner cleft of the heart and the delicate bottom tip required careful climb-cutting and progressive light passes to avoid tear-out on Purpleheart's dense 2,520 Janka fibers. The curves were then hand-blended with flexible abrasive pads through 120, 180, 240, and 320 grit.

Smooth curved edges routed on the table router
Routed and hand-blended curved profile. Notice how the contours soften light reflections. Click to enlarge
Router Safety & End Grain Burn

Because Purpleheart contains natural resins and extreme cellular density, it easily burns if a router bit lingers even a fraction of a second. Running the table router at moderate RPM (around 16,000 RPM) with rapid, continuous feed passes prevents burning while delivering a glass-smooth edge.

Step 03 Thermal Color Awakening

The Secret Oven Bake: 120°C–150°C for up to 60 Minutes

Freshly cut and sanded Purpleheart looks remarkably muted: a dull grayish brown with faint lilac hints. Normally, woodworkers wait weeks or months under direct sunlight for UV rays to oxidize the heartwood into purple.

To unlock the absolute deepest, most vibrant purple coloration instantly, the sanded board was placed in a preheated domestic oven between 120°C and 150°C for approximately 45 to 60 minutes. The gentle dry heat accelerates the photochemical oxidation of peltogynol pigments within the wood fibers without scorching or charring the cellular structure. As the heat permeates the solid timber, the entire board explodes into a breathtaking, electric magenta-violet!

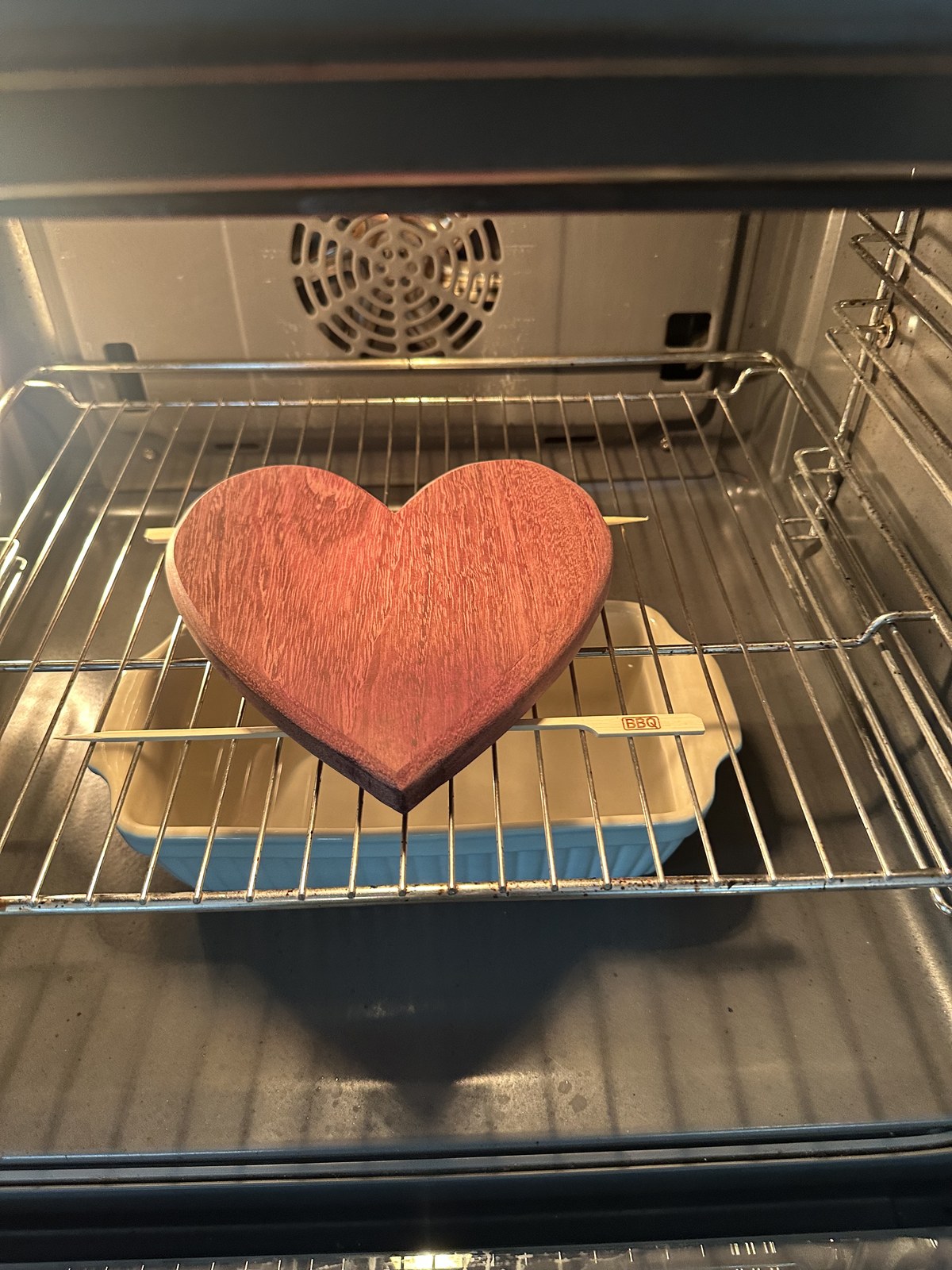

Purpleheart heart board during oven thermal color treatment
After the oven bake: Thermal activation causes the purple pigments to bloom across the entire surface. Click to enlarge
The Chemistry of Thermal Oxidation in Peltogyne

Purpleheart contains specialized polyphenolic compounds (peltogynoids). Heat drives out residual moisture and triggers rapid oxidative coupling of these flavonoids. Keeping the temperature safely under 160°C prevents the wood from darkening to brown, locking in the coveted royal violet state.

Step 04 Natural Sealing

Finishing with Swiss Beeswax Holz-Butter

While the board was still warm from the oven, it was generously conditioned with natural Swiss Holz-Butter (a pure food-grade blend of organic beeswax and pharmaceutical-grade botanical oils). The warmth allowed the beeswax to liquefy and soak deeply into the open wood pores. Using a soft lint-free cotton cloth, the butter was massaged in circular motions, deeply feeding the timber and locking in the thermal purple coloration.

Applying Holz-Butter beeswax to the warm purpleheart board
Hand-buffing with Holz-Butter. The beeswax creates a velvety, food-safe tactile seal. Click to enlarge
Step 05 The Final Masterpiece

The Finished Heirloom Serving Board

After letting the beeswax cure for 24 hours and executing a final high-speed flannel buff, the completed heart board displays an astonishing depth of color: a rich, royal wine-violet that shifts with the light. The heavy curved profile feels exceptionally comfortable to hold, serving as the ultimate centerpiece for cheeses, fruits, and charcuterie.

Finished Purpleheart heart-shaped serving board
The completed piece: Deep, lustrous violet heart board ready for culinary presentation. Click to enlarge
