Beech & Purpleheart Diagonal Grid Board

Planer Preparation & Miter Saw Batching

The foundation of this geometric cutting board began at the planer, where the European Beech and Purpleheart wood pieces were carefully planed down to a precise cross-section of 30 mm × 22 mm, establishing flat, parallel reference faces and crisp 90-degree corners. Next, a miter saw equipped with a positive stop block was used to cross-cut uniform 30 mm pieces, resulting in consistent blocks measuring exactly 30 mm × 30 mm × 22 mm.

The 22 mm dimension served as the raw thickness: having an extra 2 mm of thickness allowance was an intentional decision, allowing the subsequent post-glueup flattening and extensive sanding steps to bring the entire board down to its final, dead-flat 20 mm (2.0 cm) finished thickness.

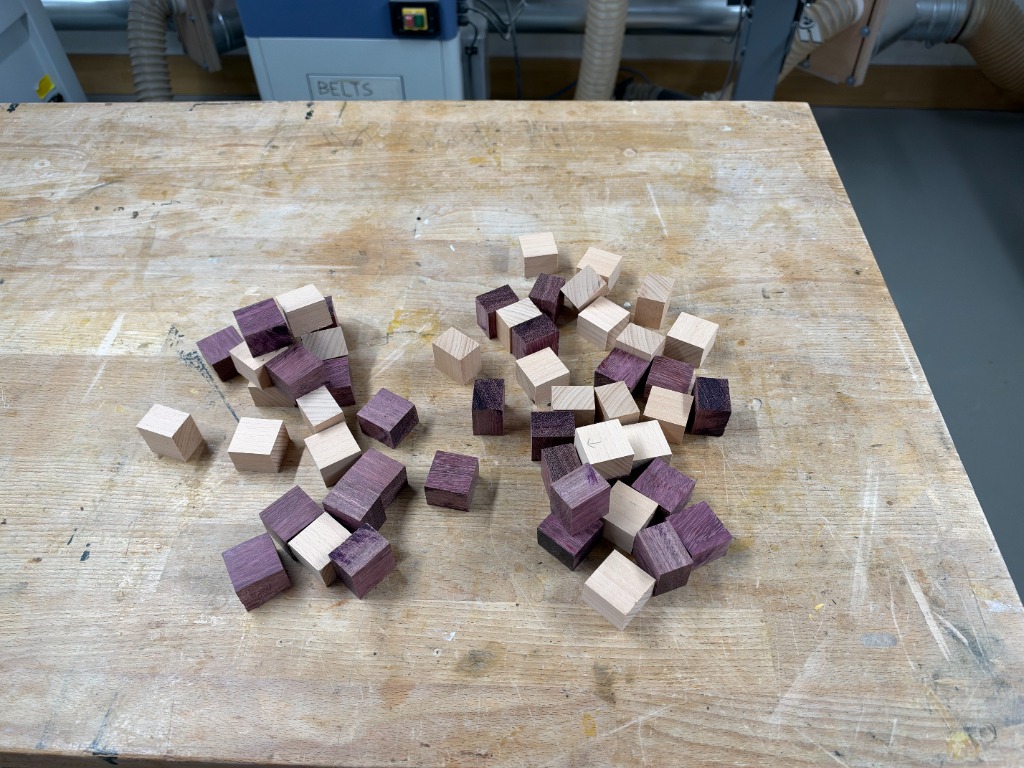

Cut cubes arranged on the workbench before sorting and strip alignment. Click to enlarge

Linear Strip Layout & Caul Setup

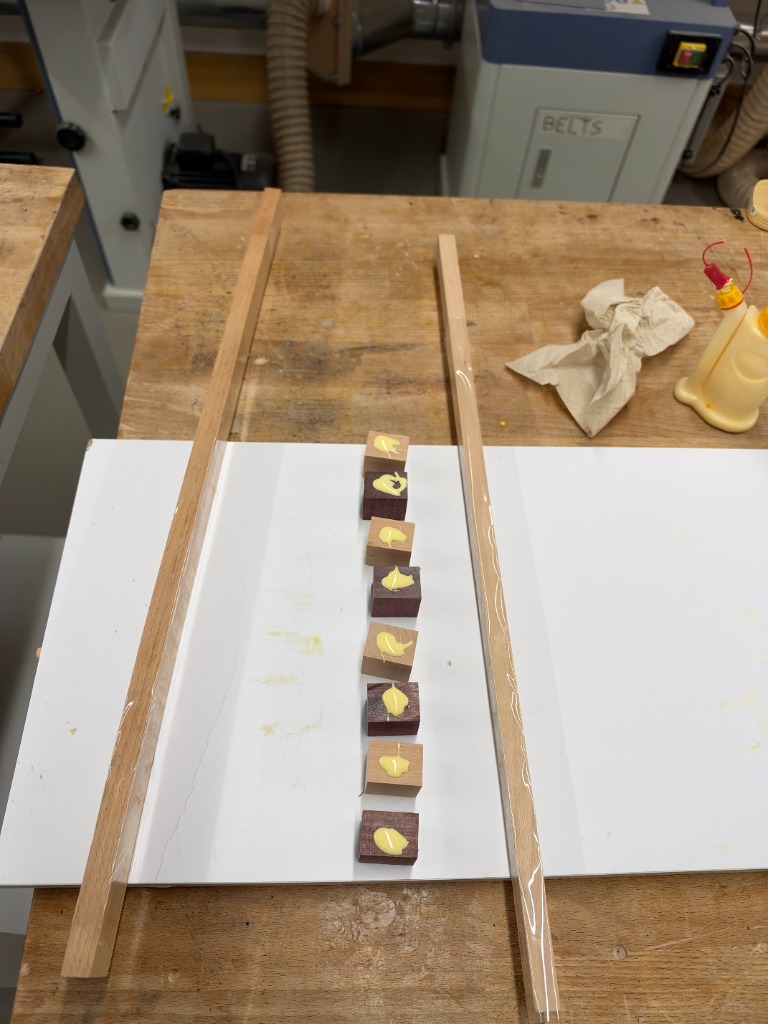

Attempting to glue dozens of individual blocks simultaneously in a 2D matrix is a recipe for disaster: glue dries too fast, parts skate out of position, and clamping pressure distributes unevenly. The solution is to first build intermediate linear strips. Two wooden guide cauls were wrapped in standard polypropylene packing tape (wood glue does not adhere to packing tape) and affixed to a flat white melamine board. The blocks were laid out in alternating patterns with glue beads applied.

Melamine alignment jig with taped cauls ensuring straightness along the linear axis. Click to enlarge

Even Glue Spreading with Silicone Brushes

End-grain and cross-grain joints absorb glue rapidly through capillary action. If adhesive is only dotted on, the end fibers will suck up the moisture and create a starved joint prone to splitting later. A flexible silicone glue brush was used to spread an even, full-coverage film across all meeting faces of the Beech and Purpleheart blocks before applying axial pressure.

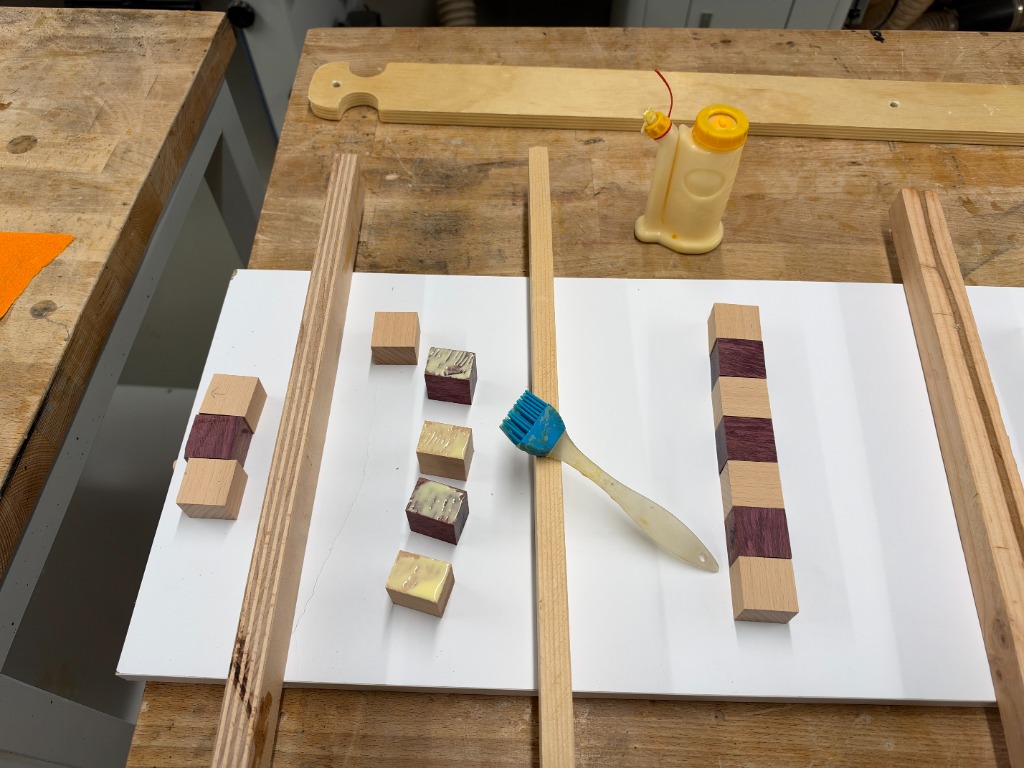

Silicone brush and glue bottle setup alongside cured and curing linear stick sections. Click to enlarge

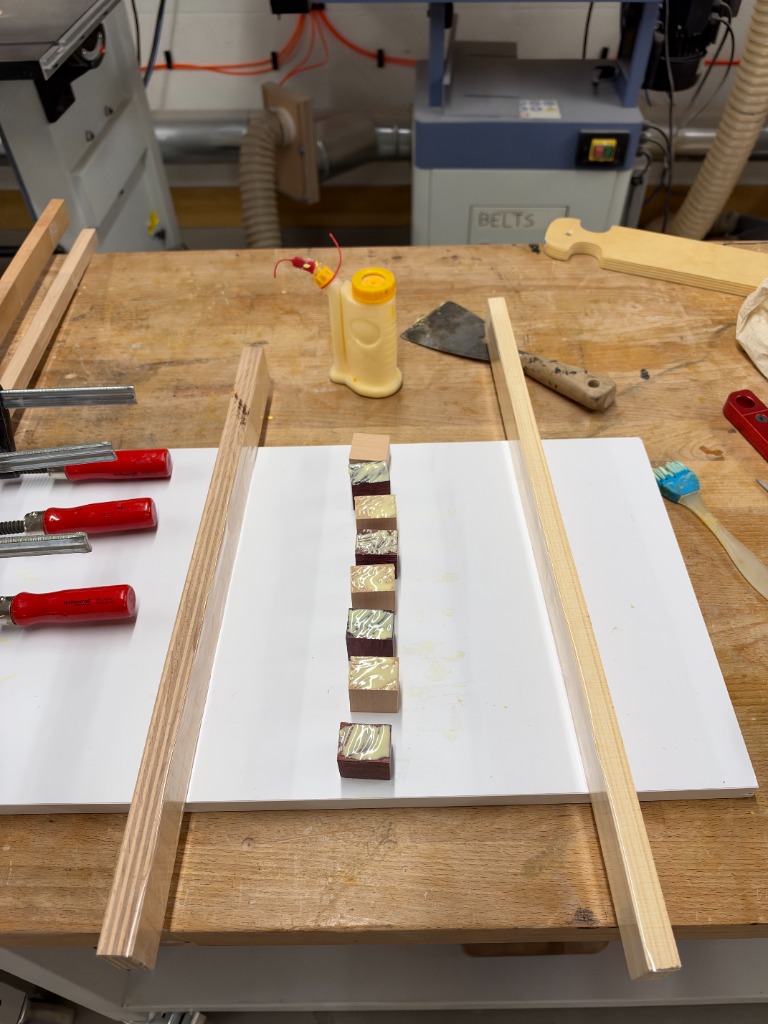

Controlled adhesive volume minimizes excessive squeeze-out while ensuring complete fiber bond. Click to enlarge

Mapping the 45° Diamond Grid Matrix

Once the individual linear strips cured and were lightly scraped of glue beads, they were shifted by one unit relative to each other to generate the diagonal 45-degree diamond checkerboard pattern. A full dry fit was executed on the flat melamine board. Pencil reference arrows were drawn across the back and faces to index each strip’s exact position and prevent accidental flips during the final high-stress glue-up.

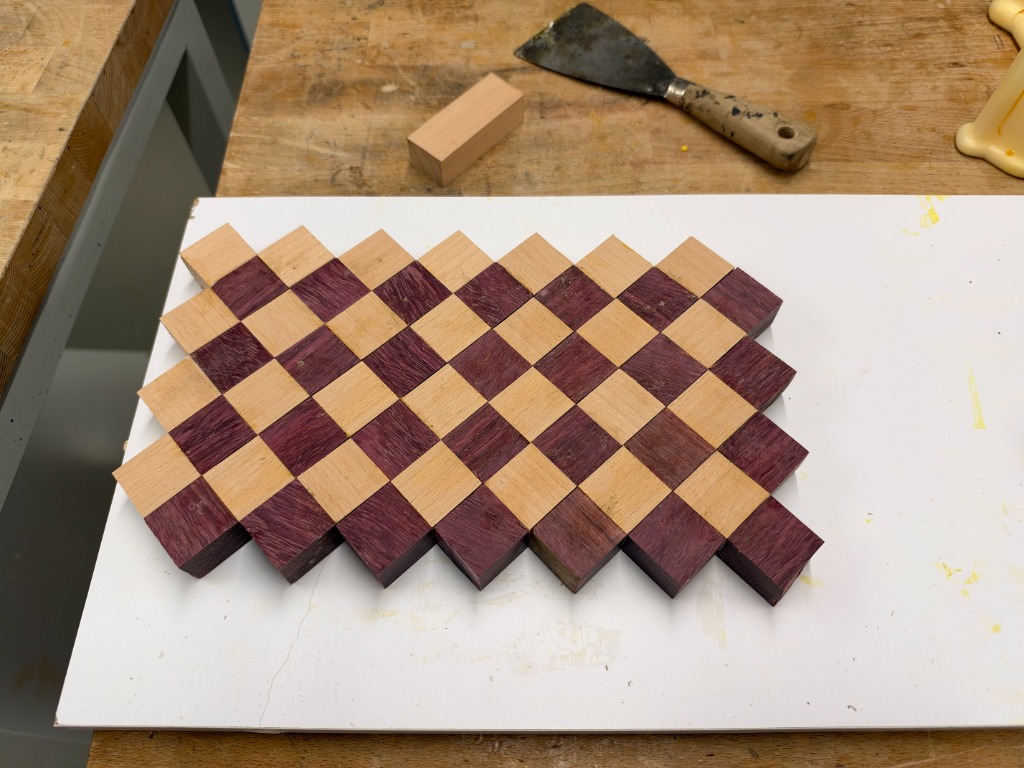

Dry fitting the stepped diamond pattern. Notice the stepped perimeter before squaring. Click to enlarge

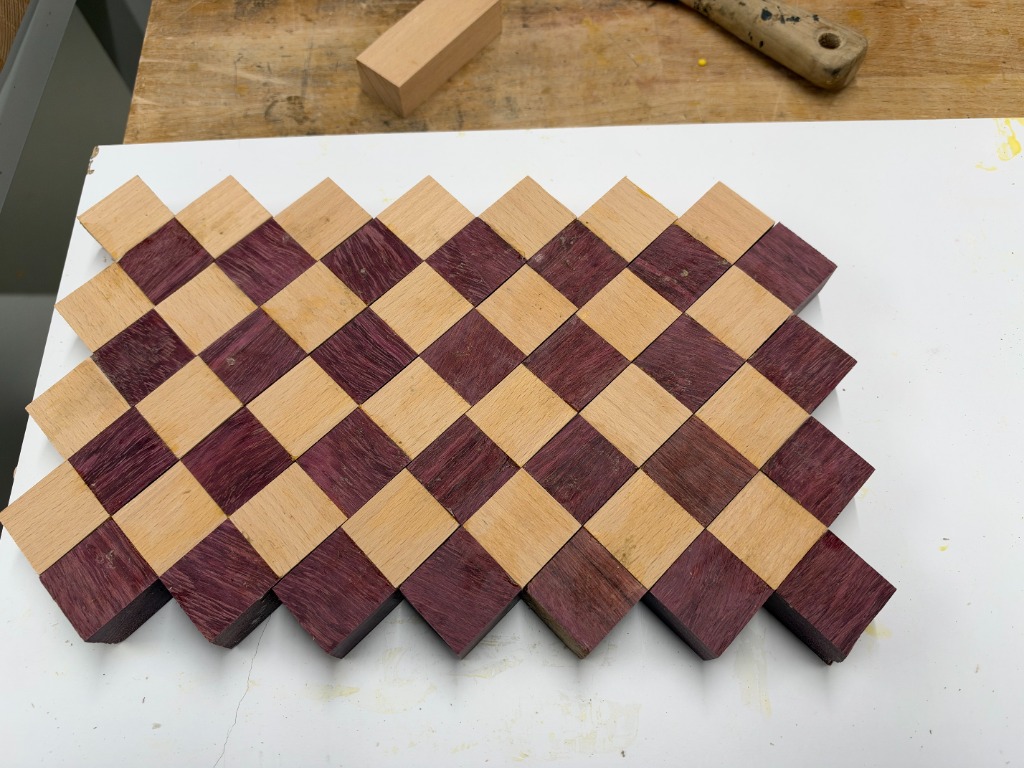

Full checkerboard layout on melamine. Raw purpleheart exhibits its natural light lavender-plum hue. Click to enlarge

Sectional Sub-Assemblies & Diagonal Clamping

Clamping a stepped diagonal matrix is one of the most frustrating challenges in fine woodworking. Because the joints run at 45 degrees to the edges, applying clamp pressure directly along the length creates a shear vector that forces the strips to slide and skate out of square. To conquer this, the board was glued in two distinct triangular/chevron halves first.

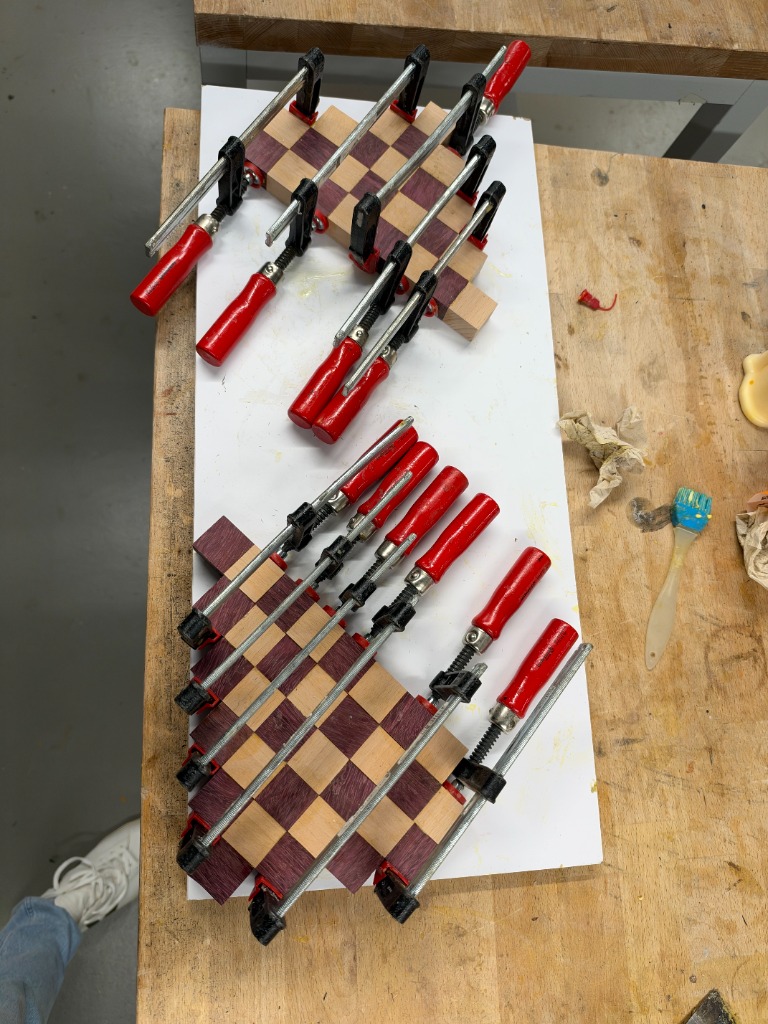

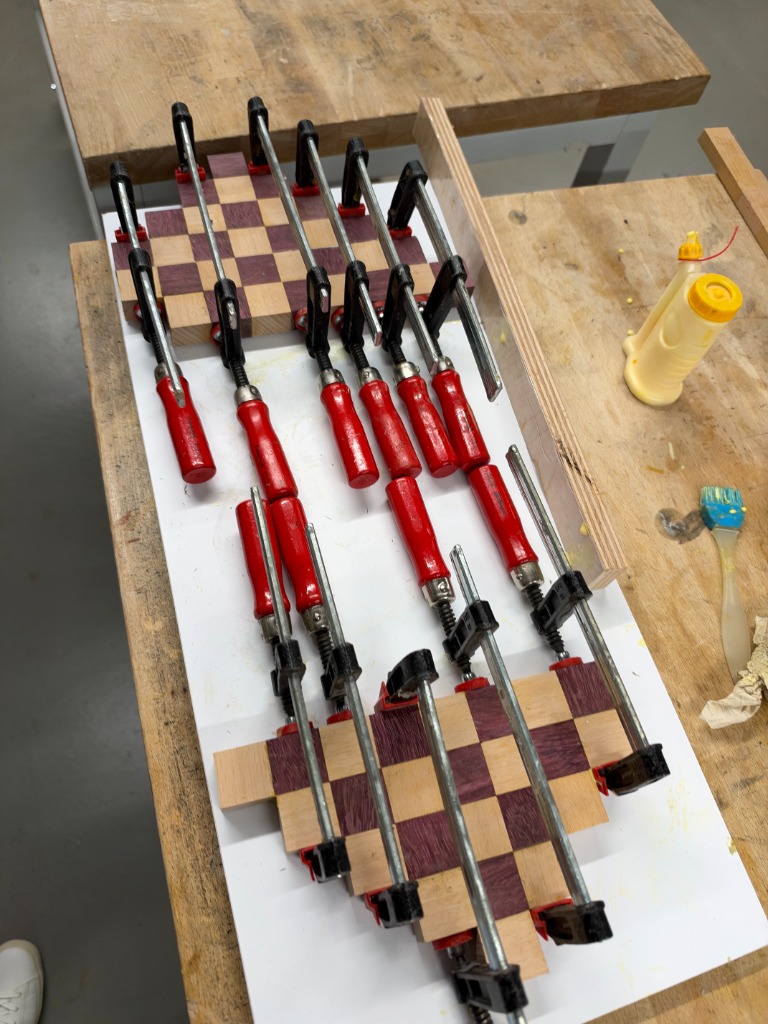

Staged clamping: Two sub-assemblies clamped independently under heavy F-clamps. Click to enlarge

Parallel clamping forces applied perpendicularly across the seam interfaces. Click to enlarge

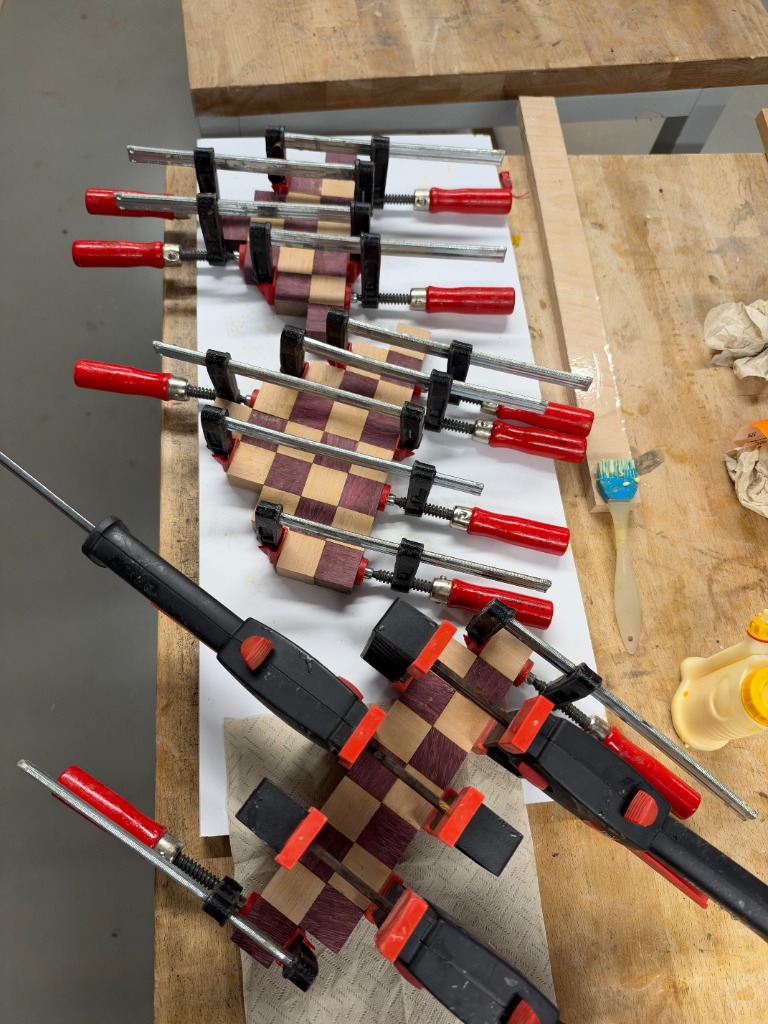

Hybrid clamping: Steel F-clamps provide primary compression while quick-grips maintain lateral alignment. Click to enlarge

The Master Glue-Up & Full Matrix Compression

With the sub-sections flat and cured, the center diagonal seam was freshly jointed and the entire matrix was brought together in the master glue-up. Four heavy parallel bar clamps provided the main compression across the diagonal axis, while opposed clamps prevented the slab from bowing or potato-chipping under intense tension.

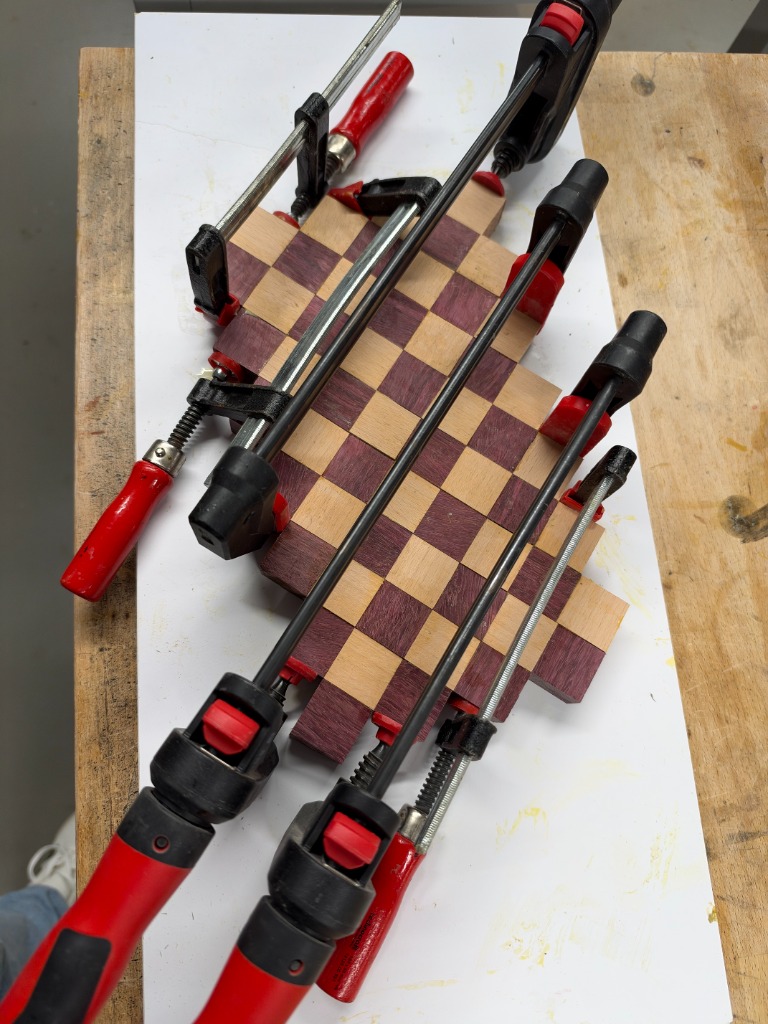

Master glue-up: Comprehensive clamp pressure along the 45-degree axes. Click to enlarge

Squaring the 19cm × 28cm Perimeter & Sanding

Once the assembly cured for 24 hours, the stepped sawtooth edges were marked with an engineering square and layout ruler, then trimmed square using a track saw with an ultra-fine blade to achieve the final 19.0 cm × 28.0 cm perimeter. The board had started from initial 22 mm thick blocks; through careful leveling and progressive random orbital sanding across both faces (80 → 120 → 180 → 240 grit), the surface was flattened down to its final uniform 20 mm (2.0 cm) thickness. At 240 grit, the board was lightly misted with warm water (“water-popping”) to raise compressed fibers, allowed to dry, and final-sanded with 320 grit until like polished stone.

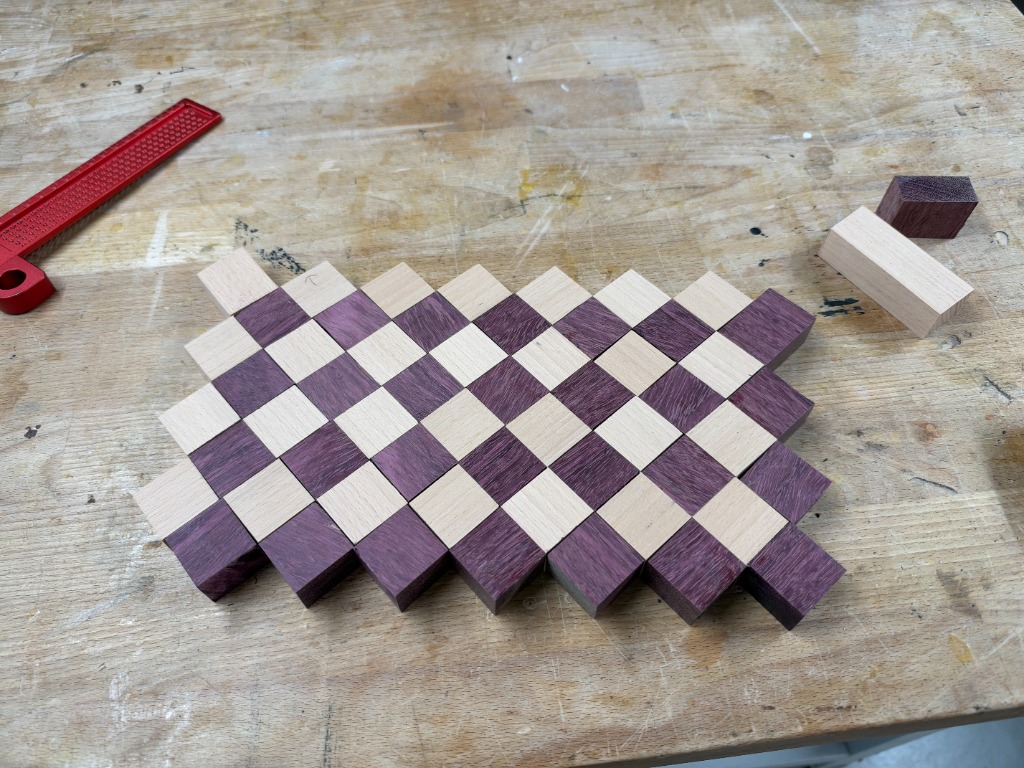

Checking 90-degree squareness and preparing perimeter reference cuts with precision layout tools. Click to enlarge

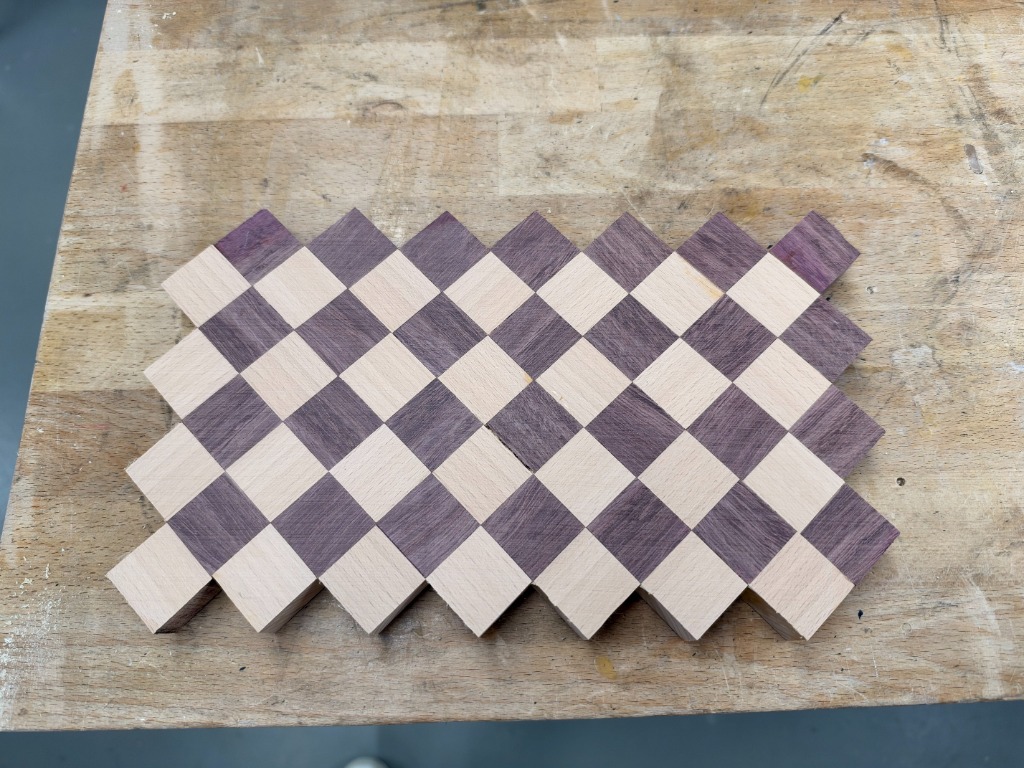

The trimmed and sanded slab in raw wood state (320 grit). Silky smooth to touch, waiting for oil. Click to enlarge

The Oil Pop: Awakening the Grain

The ultimate reward of working with exotic timbers: applying food-safe pure mineral oil. The thirsty end-grain pores act like bundles of capillaries, drawing the oil deep into the cellular matrix. Instantly, the light lavender purpleheart combusts into a regal, saturated magenta-violet, while the pale European Beech turns a deep, honey-golden amber. Two flooding coats of mineral oil were applied until refusal, followed by a buffed layer of homemade beeswax and mineral oil board butter to seal the surface with a silky satin sheen.

The finished board resting on the workbench: Rich purpleheart and radiant beech end-grain grid. Click to enlarge
